Confocal Microscope

There are many aspects to consider regarding the functionality and operation of a confocal microscope.

What is a Confocal Microscope?

Confocal microscopesincorporate a pinhole in front of the light receiving element to block ambient and out-of-focus light. This allows the microscope to use the position that has reflected the most intense light as the true height. The following section describes the individual steps of the detection process of the KEYENCE 3D Laser Scanning Confocal Microscope.

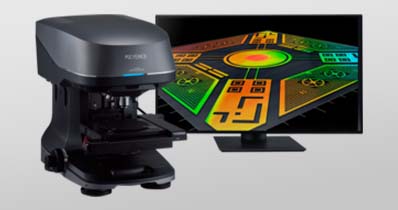

KEYENCE 3D Surface Profiler VK-X3000

How Does a Confocal Microscope Work?

The following section explains the confocal principle in four steps.

1. Light transmission

A
Light source
B
Objective lens
C
Target

Confocal microscopes transmit light via the objective lens onto the target. The light is focused, via an objective lens, in the focal point of the desired measurement area of the target.

2. Reflected light

A
Pinhole
B
Half mirror
C
Light receiving element

The target positioned at the focal point reflects light back through the optical system, to a half mirror that directs the light to the light receiving element.

3. Reflected light passes through the pinhole

A
和谐rated laser light
B
Half mirror

A pinhole placed in front of the light receiving element blocks out all out of focus light reflected from the sample.

4. Focusing

A
When focused
B
When out of focus

Only light passing through the pinhole is focused; the rest of the light from the confocal microscope is absorbed by the mask area. If the target is not at the focal point, the light is focused on a point offset from the pinhole, which widens the light beam from the confocal microscope so that the light is no longer focused on the pinhole itself. This means that the amount of light that hits the light receiving element is reduced. The confocal microscope detects whether the target is at the focal point based on the intensity of the reflected light that returns to the light receiving element. As a result, light only reaches the light receiving element from the area of the target which is in focus, and is blocked from all other areas.

TheKEYENCE 3D Surface Profileruses the confocal principle in tandem with a laser point scanner to make quick, accurate, and automated measurements with a single click.
