Basics - Laser Tracker, Part 2: Fundamentals

January, 2021

Are you looking to learn the fundamentals oflaser trackersincluding their capabilities, advantages when compared to other measurement practices, technical tips and next-generation functions? Our free metrology resource website offers key knowledge and information related to dimensional measurement instruments, environment requirements, selecting the right tool for the job, and various inspection processes.

Fundamentals

1Overview

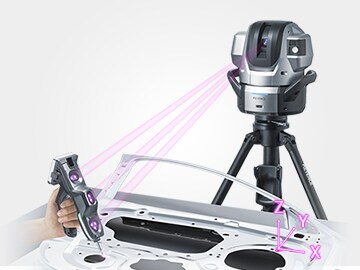

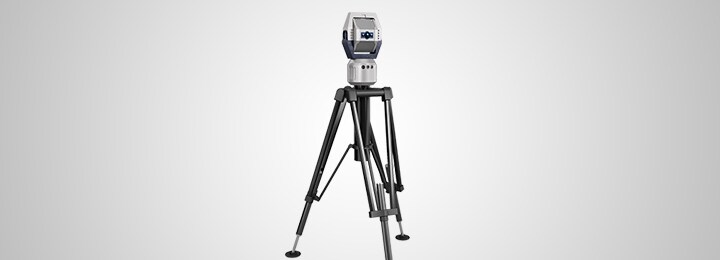

What is alaser tracker? Alaser trackeris an inspection tool that accurately measures large objects by determining the positions of optical targets held against those objects.Laser trackerstake measurements by having the technician first sets up alaser trackeron a tripod with an unobstructed view of the object to be measured. The technician removes an optical target, known as a retroreflector (SMR), from the base of thelaser trackerand carries it to the object to be measured, moving smoothly to allow thelaser trackerto follow the movement of the retroreflector. It calculates the displacement from a reference position in a 3D Cartesian coordinate system (XYZ axes).

2Capabilities and Advantages

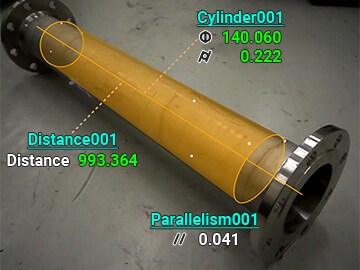

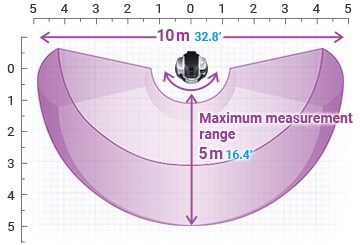

Laser trackersallow for accurate 3D measurement of large objects by determining the positions of optical targets held against those objects, giving users an advantage over single dimension or 2D measurement instruments such as calipers, micrometers, and large optical comparators.Laser trackershave the advantage of being portable and providing a measurement range of several meters. Being wireless tools, they also give flexiblity beyond part inspection, enabling machine tool measurement, alignment checks and even calibration of motorized objects such as robotic arms.

3Core Technology and Advancements

Learn about the core techology that drives these tools, and the next-generationlaser trackerusing the principals of these tools of in new ways to bring added-value to production and quality inspection. Modernlaser trackersare increasingly advancing in portability, durability, measurement accuracy and continually seeing newly-developed functionality.

Measurement Fundamentals是一个信息网站提供知识吗edge related to dimensional measurements in manufacturing, includinglaser trackerbasics. Visit the site to learn more about the topics above and more!
